Customized Professional Food Dehydrator Lemon Drying Machine Shrimp Dehydrator

Basic Info.

Product Description

Customized professional food dehydrator lemon drying machine shrimp dehydrator

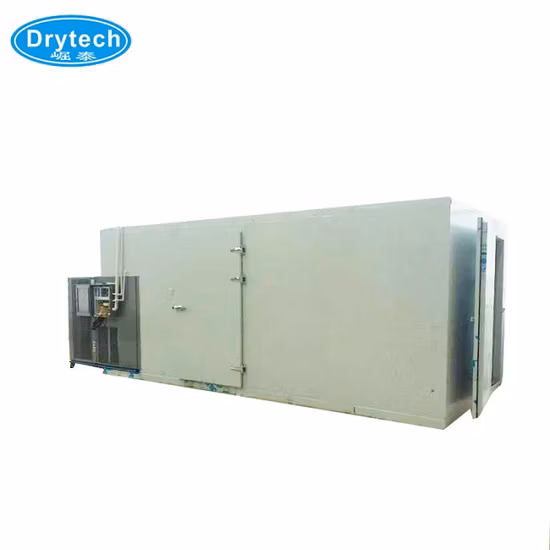

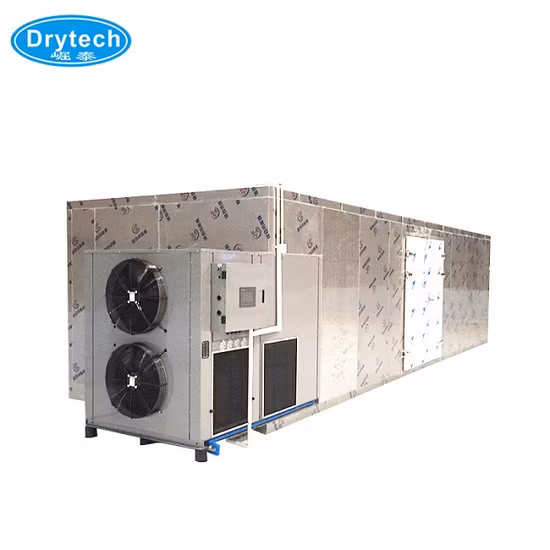

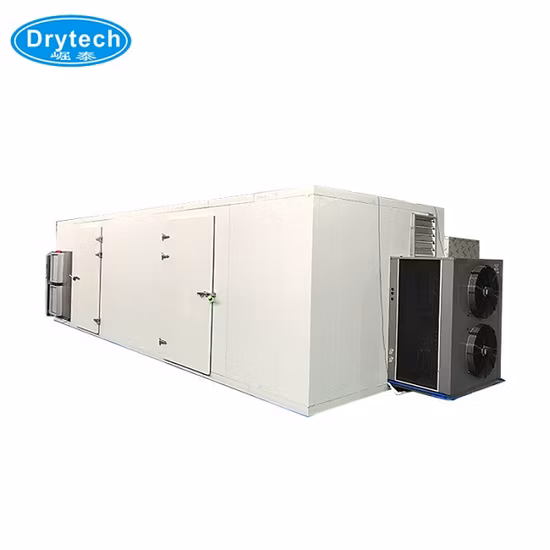

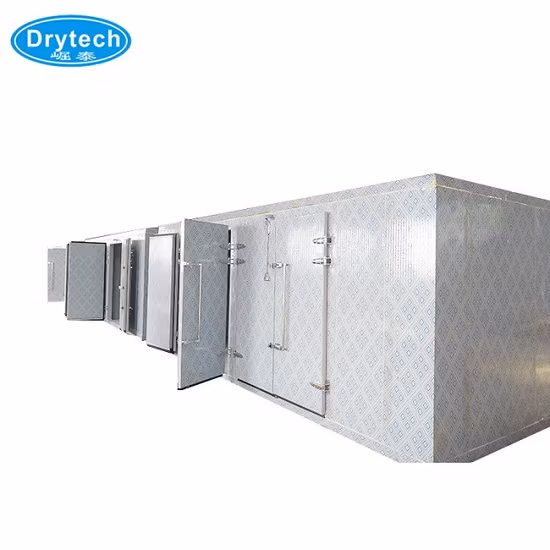

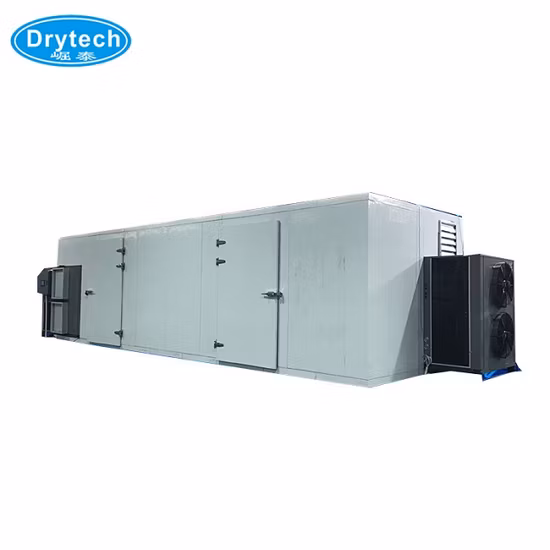

What Are DRYTECH Heat Pump Drying Machine?

DRYTECH Heat Pump Drying Machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
Working principle

Customized professional food dehydrator lemon drying machine shrimp dehydrator
No MOQ and Customized limitdDrying+Dehumidify+Cooling functionPLC+Touch Screem Control7-10Days Delivery Time

Usually There is three working mode only

Drying

Drying + dehumidify

Cooling

Drying: temperature can rise fast, but dryer cannot discharge moisture air

Drying + dehumidify: chamber temperature rise and discharge moisture air

Cooling: temperature can down to 10c(minimum)

Sometimes, if the dryer cannot control the temperature accurately, please choose Temper + humidity

Drying machine FAQ

1.high pressure protection

A.hot air circulating fans does not working

a1. AC contactor use for hot air circulating fans overloading protection(please check power source whether lack phase/connecting port or voltage not stable)

a2. part of hot air circulating fan not working(check whether the fans have many ON/OFF switch or some fans was burned)

a3. Fan was damaged (replace new fan or uninstall damaged fans)

B.Too much more products on trays or too much more trays on trolleys lead to block hot air (hot air cannot circulating in drying chamber or too slow wind speed, usually two tray's distance at 8-10cm is reasonable).

C.electronic expansion valve throttle opening too small; or jammed.

c1. Controller adjust electronic expansion valve's opening to small automatically(temperature sensor not accurate-change installation place, exchange 1# and 2# sensor's position)

c2. electronic expansion valve does not working(turn valve body)

D.chamber's temperature too high(set lower temperature)

E.refrigerant is not high temperature type, re-fill gas.

2. low pressure protection

A. leak gas(check leak point, repair)

B. weather too cold(expand check time for low pressure protection, or charge low temperature gas, e.g. R22/R417A)

C. electronic expansion valve opening too small(adjust bigger)

3. exhaust temperature too high protection

A. leak gas(check leak point, repair),

B. electronic expansion valve does not working(turn valve body).

4. temperature sensor error(replace new one)

5. discharge moisture too slow or does not discharge moisture

A. dehumidify fan was damaged, B. controller go wrong, C. dehumidify fan power

Our service:

A. Payment Service

1, T/T

2, L/C (for container order only)
3, Western Union, (for sample order & parts)

B. Technical service

1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty
